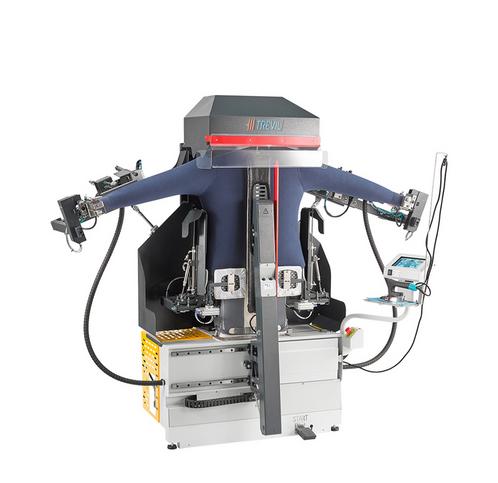

5203 Trevistar CR4

The 5203 Trevistar CR4 is our updated high quality shirt finisher combining high productivity with "hand finished" quality.

PTFE coated shoulder and cuff placket presses eliminate shine on dark color fabrics.

Narrow buck enables easy pressing of tapered shirts.

The hood recycles hot air from the form and redirects it to the shoulders and seams, ensuring no contact between fabric and metal parts.

The exclusive SideDry system applies vertical tension to the side seams and focuses hot air flow for faster dry time and better quality.

The "Economizer" increases the temperature of the air used for drying, reducing cycle times and saving steam and energy.

Designed with user comfort in mind, it is controlled via the intuitive TreviTouch touchscreen panel.

Production up to 50+ shirts per hour is possible.

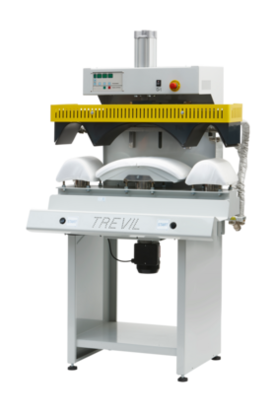

The Trevil 6360 Cuff & Collar Press is the perfect compliment to any of our shirt finishing machines;

Presto FC, Trevistar, or Princess Ultra.

Footprint: 39" x 24"
Overall Machine Size: 39" x 24" x 68"
Net/Gross Weight: 350/410 lbs.

It's got a self-contained vacuum to assist in positioning the shirts so they don't slip off the bucks as well as to speed the drying process.

PTFE coated plates minimize the possibility of shine on dark shirts.

Collar tensioning increases quality.

The machine can operate on only 80 PSI which saves operating costs.

6360 Cuff & Collar Press Specifications:

Voltage: 120V 60 Hz - 5 Amps
Operating Steam Pressure: 80 -115 PSI
Operating Air Pressure: 80 -115 PSI

Trevistar Specifications:

Voltage: 208-230V 3 Phase 60 Hz - 18 Amps
Operating Steam Pressure: 80 - 115 PSI
Operating Air Pressure: 80 PSI
Footprint: 39" x 39"
Overall Machine Size: 67" x 39" x 78" (maximum with arms extended 103")
Net/Gross Weight: 575/650 lbs.
