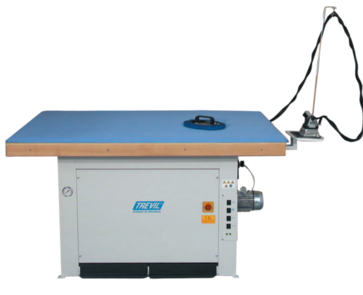

3155 Planovap Sweater/Knitwear Board


The Planovap is a large (72" x 36") rectangular steam table with self-contained vacuum (requires connection to steam source).

Steam comes through the entire pressing surface making quick work of sweaters and other knit garments.

The ironing surface is slightly angled making it easy to reach all parts of the pressing area.

Strong, self-contained vacuum allows for quick drying and cooling of the fabric for finishing and touch ups on fine garments..

Above Photo Includes Options

2127 Aliflex Vacuum Board


The Aliflex is a utility shape ironing table with self-contained vacuum.

Strong vacuum throughout the pressing surface allow for quick drying and cooling of the fabric.

Electrically heated main surface.

Options include 1 or 2 swing arms, sleeve buck, egg buck, steam/electric iron, solenoid valve with steam separator, iron trolley.

2474 Treviflex Suction/Blowing Table


The Treviflex is a suction/blowing table for finishing and touch ups on fine garments.

Self-contained vacuum and blowing (up-air).

Extra large pressing surface with narrow tip allows for finishing of smaller and larger garments.

Adjustable height makes it comfortable for any operator to use.

Pedals can be mounted on either side making the machine point right or point left.

Available options include 1 or 2 swing arms, sleeve buck, egg buck, steam/electric iron with solenoid valve, iron trolley.suction/blowing table with bottom steam (requires connection to steam source).

Ironing and Spotting Equipment

Specifications:


  • Voltage: 120V 60 Hz - 5 Amps

  • Overall Machine Size: 72" x 33" x 38"

  • Net /Gross Weight: 695/795 lbs.

Specifications:


  • Voltage: 208-230V 3 Phase 60 Hz - 11 Amps

  • Overall Machine Size: 53" x 20" x 89"

  • Net/Gross Weight: 280/330 lbs.

Above Photo Includes Options

Specifications:


  • Voltage: 120V 60 Hz - 4 Amps

  • Overall Machine Size: 55" x 17" x 71"

  • Net/Gross Weight: 112/145 lbs.

Above Photo Includes Options

Above Photo Includes Options

or (877) TREVIL 1

Specifications:


  • Voltage: 120V 60 Hz - 6.5 Amps

  • Overall Machine Size: 67" x 22" x 39"

  • Net/Gross Weight: 364/408 lbs.

Above Photo Includes Options

Specifications:


  • Voltage: 120V 60 Hz - 7 Amps

  • Overall Machine Size: 44" x 18" x 28-38"

  • Net /Gross Weight: 140/170 lbs..

Contact Us: (973) 535-8305

2154 Planora Vacuum Board


The Planora is a rectangular ironing table with self-contained vacuum.

Strong vacuum throughout the pressing surface allow for quick drying and cooling of the fabric.

Electrically heated main surface.

Options include 1 or 2 swing arms, sleeve buck, egg buck, steam/electric iron, solenoid valve with steam separator, iron trolley.

3454 Vulkana Steam/Suction/Blowing Table


The Vulkana is a suction/blowing table with bottom steam (requires connection to steam source).

Bottom steam allows for pressing of knitwear and similar garments requiring steaming.  Also perfect for wedding gowns.

Available options include swing arm, sleeve buck, steam/electric iron with solenoid valve, iron trolley.

Above Photo Includes Options

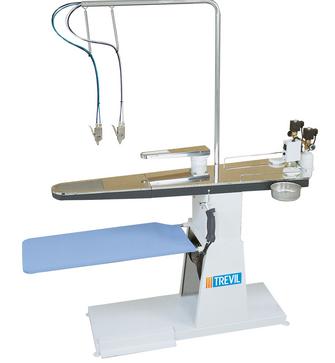

4201 Spotting Board


The Trevispot is a spotting board with strong, self-contained vacuum, a stainless steel surface, a small sleeve shape, and a garment catch tray.

It comes equipped with 2 cold spotting guns and a 3 button steam/air gun connected to adjustable steam valves.


Connection to steam and compressed air is required.


For retail shops and garment manufacturers a version without steam is available.


Specifications:


  • Voltage: 120V 60 Hz - 11 Amps

  • Overall Machine Size: 59" x 35" x 28-38":

  • Net /Gross Weight: 180/210 lbs.
